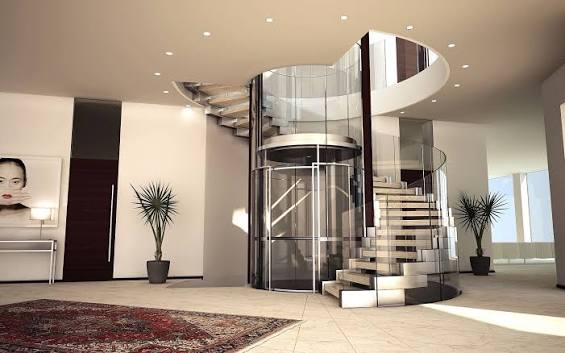

Panoramic Glass Capsule Lift
CAPSULE ELEVATOR

Panoramic Glass Capsule Lift

Aesthetic panoramic elevator featuring curved safety glass walls for premium buildings and homes.

[ SYSTEM OVERVIEW ]

Breathtaking Views and Exceptional Engineering

💡 Recommendation: Recommended for commercial buildings, premium luxury hotels, shopping malls, and upscale private duplexes aiming for a high-end designer statement piece.

Forcelifts Capsule lifts are designed to enhance the visual appeal of modern shopping hubs, hotels, and luxury villa entrances.

Using high-clarity safety glass, these elevators become a functional design feature that offers passengers a beautiful view during vertical travel.

Key Parameters

Cabin StructurePolished Stainless Steel + Safety Glass panels
Ceiling DesignAcrylic light-diffusion panels with designer downlights
Door SystemGlass framed automatic sliding doors

Control & Operation

ControlHigh speed microcomputer control
DrivesUltra-smooth gearless PMSM traction

Advantages

Stunning 180° or 360° panoramic views
High strength curved laminated safety glass
Architectural center-piece that elevates property status
Interactive customizable LED mood lighting
[ APPLICATIONS ]

IDEAL USE CASES

01

Premium Malls

Adds luxury feel and increases shopper visual field.

02

Luxury Hotels

Enhances guest experience with panoramic views.

03

Modern Duplexes

Bespoke home installation that makes a statement.

[ SPECS ]

TECHNICAL SPECIFICATIONS

Rated Load
450 kg - 1000 kg
Rated Speed
0.5 m/s - 1.0 m/s
Max Travel
20 meters
Max Stops
6 Stops
Technical Specifications

Civil Design & Installation

Comprehensive installation requirements and specifications for your elevator system

Pit Depth

500 mm

Minimal pit requirements for easy installation

Headroom

3200 mm

Standard ceiling height compatibility

Shaft Design

Glass Enclosure / Steel Structure

Flexible options based on your space

Power Requirements

3-Phase 380V/415V

Works with standard home electrical

Installation Diagram

Structural Layout

Structural Notes

Custom dimensions available to match curved glass facades.

Laminated glass keeps cabin cool and filters UV rays.

Design Your Architectural Masterpiece

Consult our structural designers to plan your custom panoramic glass lift.
